Description
In case of leakage the control unit will signal the solenoid valve to close the main water supply. The control unit will emit a warning signal, and indicate where the leakage is located.
Applications
The 7-channels is intended for use in commercial buildings and apartment buildings.
| Technical specifications | |
| Mains voltage | 230V AC 50Hz |
| Power consumption (no alarm) | 13,3mA |
| Power consumption (upon alarm, incl. valve) | 101,5mA |
| Measures | H x W x D (mm) | Weight (g) |
| Control unit | 80 (112) x 160 x 64 | 740 |
| Valve 3/4" | 120 x 92 x 56 | 1135 |
| Cables | |
| Length solenoid valve cable | 1350mm |
| Length power cable | 1050mm |

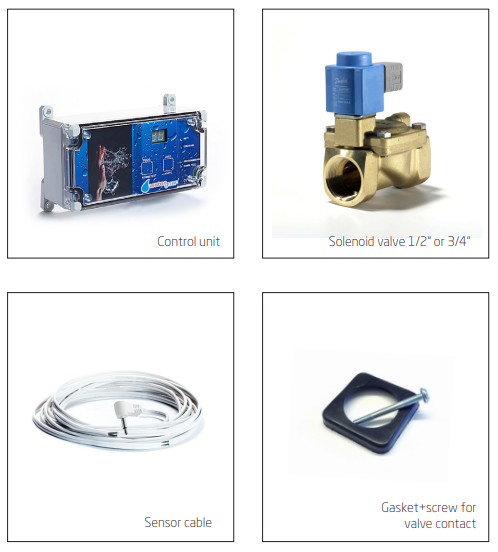

Package contents
Connectivity
7 ports for sensor cables
Leakage alarm ports: C-NC-NO
| Product variants | |
| Complete with 1/2" valve | NRF no. 5648216 |
| Complete with 3/4" valve | NRF no. 5648217 |
| Control unit only | NRF no. 5648205 |
| Associated products | |
| Solenoid valve 1/2" | NRF no. 5640101 |
| Solenoid valve 3/4" | NRF no. 5640201 |
| Solenoid valve 1" | NRF no. 5640027 |
| Split cable for 2 valves | NRF no. 5648236 |
