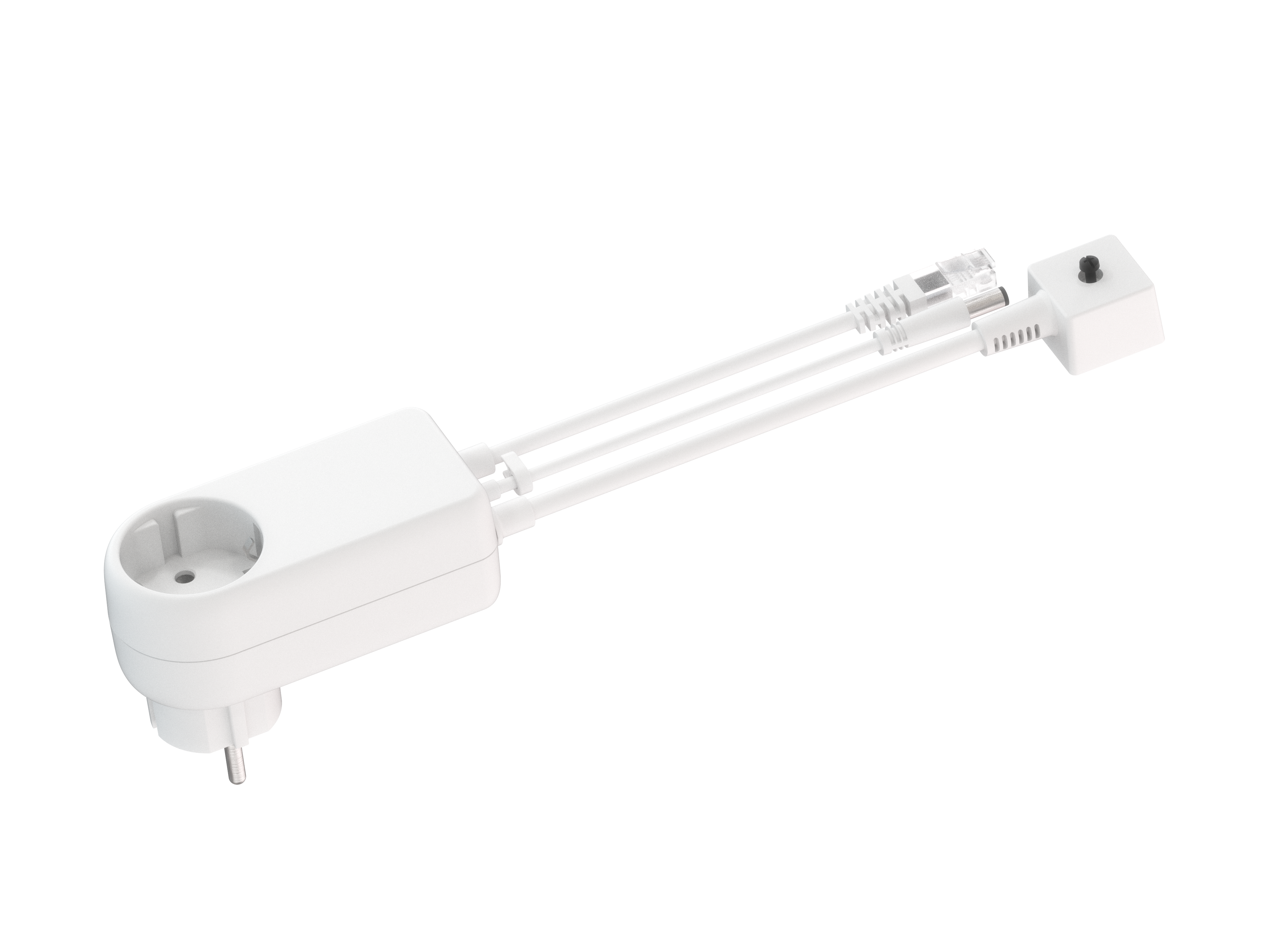

| PRODUCT | Power Adapter for Linkbox+ and Magnetic Solenoid Valves 24V DC / 230V AC | |
| MPN | EAN | NOBB |
| 72.380.337406 | 7072380374067 | TBA |
Product description
The power adapter powers the solenoid valves and ensure connectivity to the Linkbox+. The adapter is used to install new Waterguard+ when magnetic solenoid valves are required (1-2 inch pipe dimensions) and can also be used to convert legacy Waterguard systems (with 230VAC magnetic solenoid valves) into a Waterguard+ system (Compatible with Linkbox+ WiFi or Linkbox+ 4G)
For installation instructions, see Waterguard+ installation & user manual
Technical specifications
| IP degree | IP44 |
| Flammability |
IEC 60950 1&22, CE‑UL94 |
| Vibration | According to I&HAS guidelines |
| Voltage | 24VDC |
| Operating temperature range |
–10 to 70 °C (14 to 158 °F) Relative humidity: 0% - 100% |
| Connectors |
Power (barrel plug) RJ45 (Valve input) DIN43650 (Valve output) |
| Cable length power and valve input |
2m |
| Cable length valve output |
2m |
| Compliant materials |
RoHS (2002/95/EC) |
| Certifications |
CE/RED |
| Color |
White |
Connectors
| IN / OUT | Type |
| Power (Linkbox+) | 24VDC Barrel Jack |
| Valve signals IN | RJ45 |
| Valve signals OUT | DIN43650 |

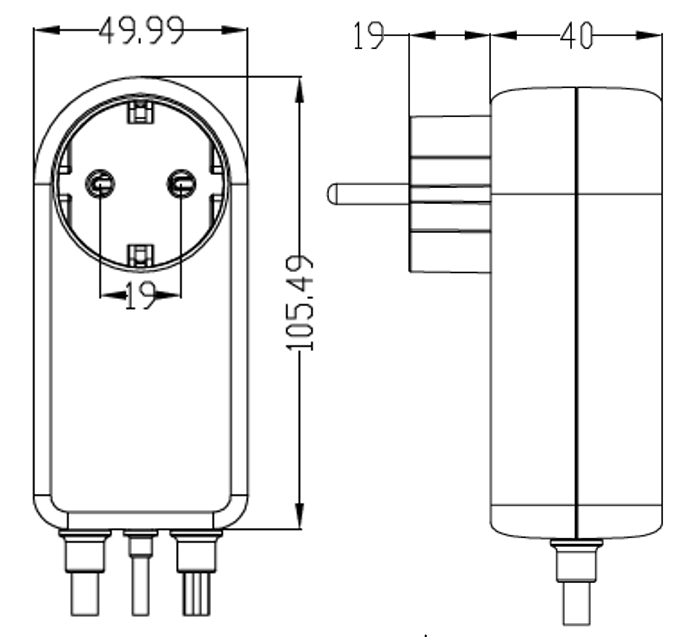

Product measures
