Keywords: bracket, fixed installation, WaterSensor+, 5V power adapter, 5648922
| PRODUCT | WaterSensor+ Power Supply Bracket Kit | |
| MPN | EAN | NOBB |
| 72.380.337310 | 7072380373107 | 5648922 |
Product description

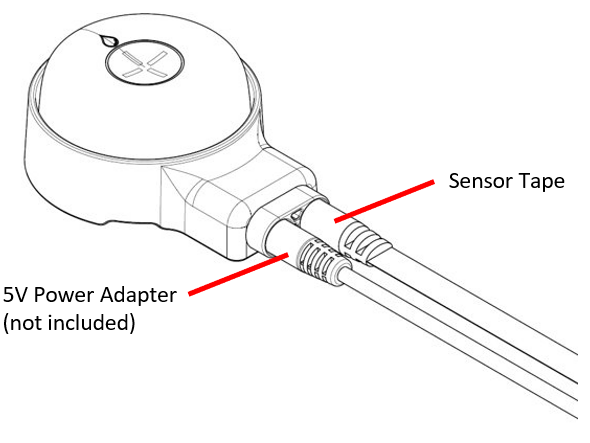

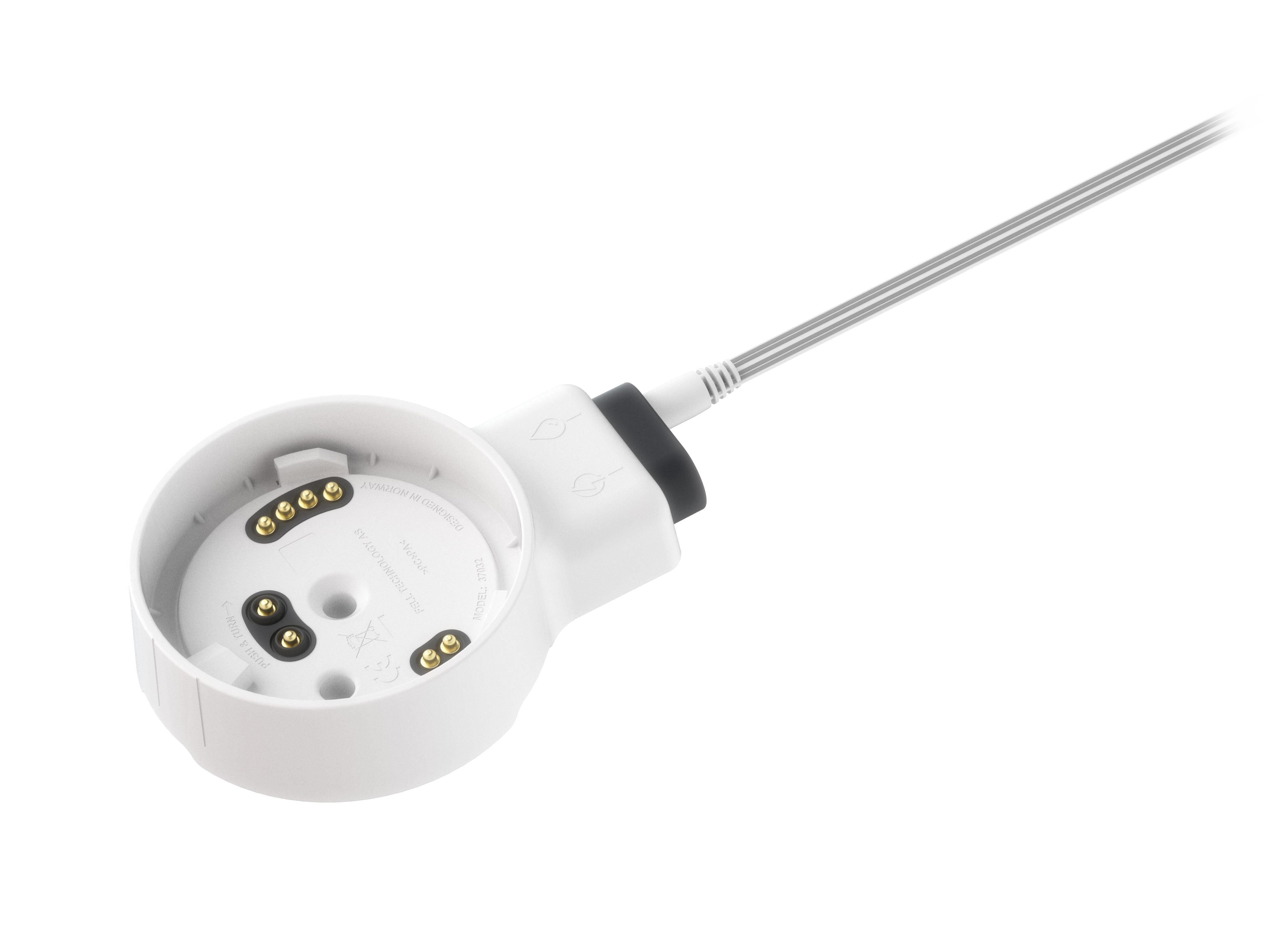

Bracket for fixed installation of WaterSensor+ on wall or floor. The bracket protects the sensor from unintentional impact and enables use of external 5V power adapter + Sensor Tape for extended coverage (3 m Sensor Tape is included with the bracket, the power adapter must be ordered separately).
The bracket has screw-mount interface for installation on walls and dual sided tape at bottom for easy fixation to delicate surfaces like tiles etc.
Technical specifications
| IP degree |
IPx4 (external connectors and power transfer pins to Water Sensor) |
| Flammability |
IEC 60950 1&22, CE‑UL94 V-0 |
| Operating temperature range |
0 °C to 70 °C (14 to 158 °F) Relative humidity: 0% - 100% |
| Compliant materials |
RoHS (2002/95/EC) |
| Regulatory Compliance |
CE (EN 62368 (Power adapter)) |
Connectors
| IN / OUT | TYPE |
| Sensor connectors | 8 x spring connectors for the Waterguard+ Sensor probes |
| Sensor Tape | 3,5 mm Jack |
| Strømtilførsel (5V) | DC Barrel Jack |

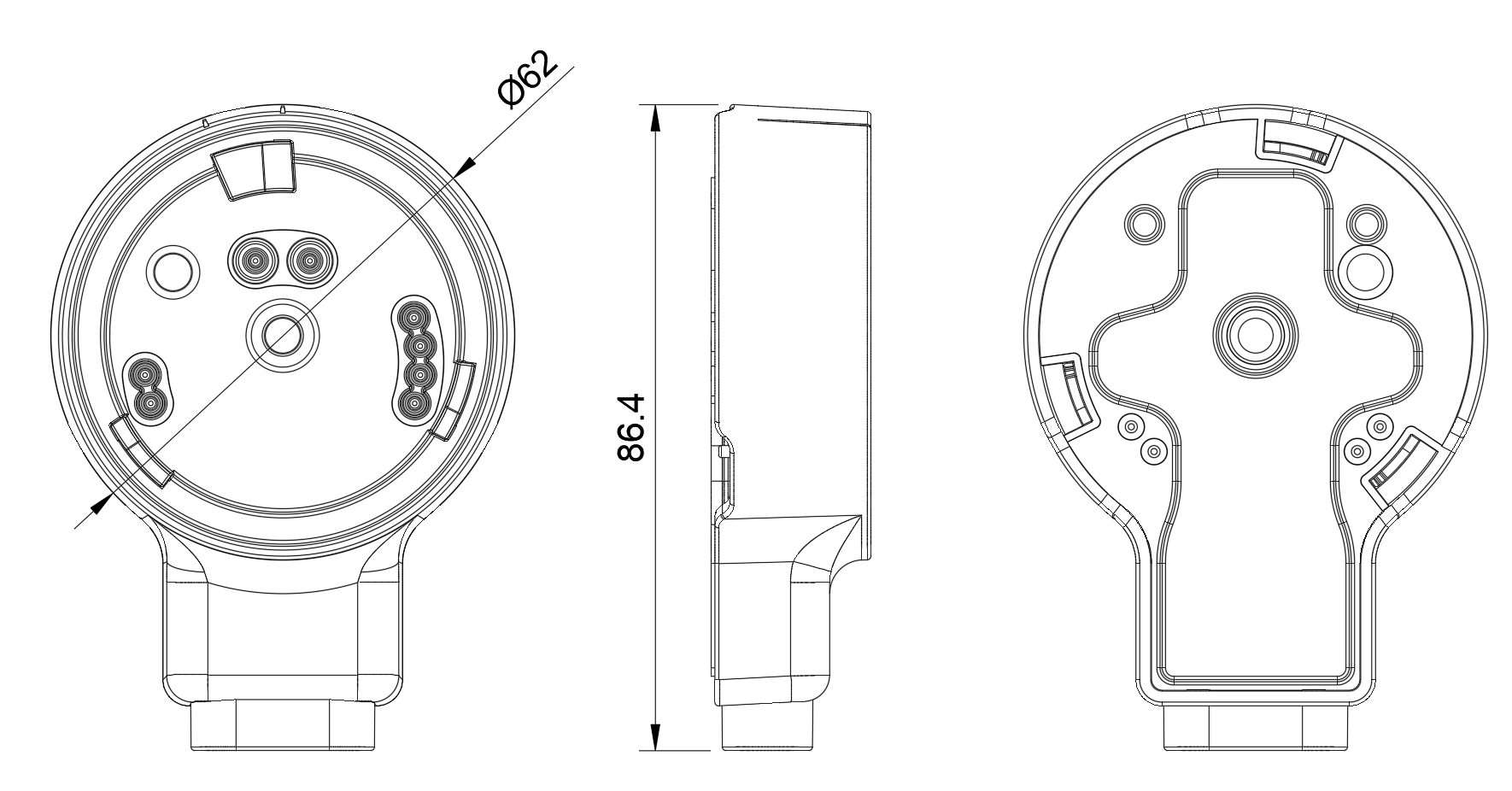

Product measures
