Keywords: Docking, Linkbox+ Wifi, Linkbox+ 4G, mounting
| PRODUCT | Docking for Linkbox+ (230V, 1,5 wallbox mount) | |
| MPN | EAN | NOBB |
| 72.380.337309 | 7072380373091 | TBA |
Product description

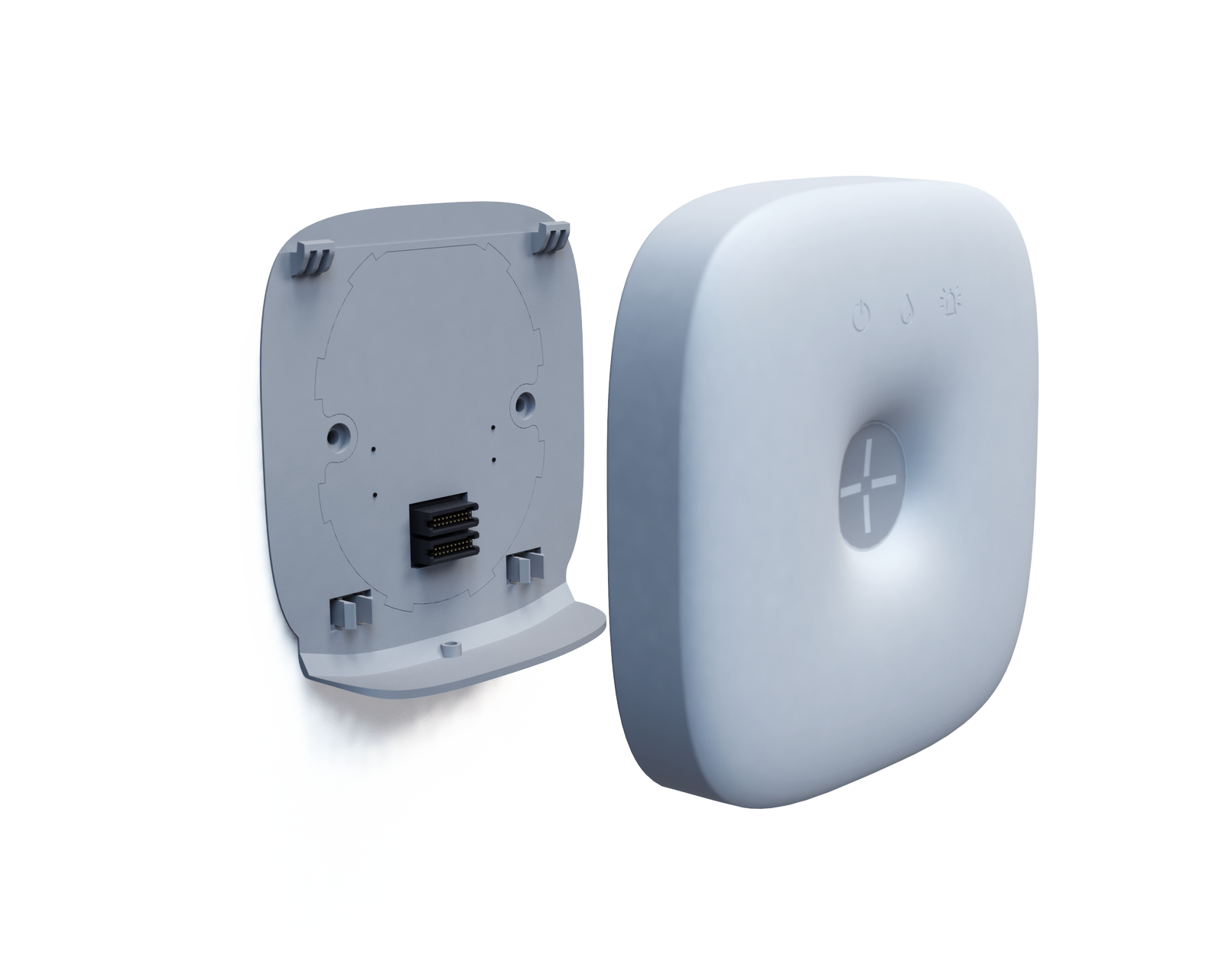

Intrusion & Hold-up Alarm System (I&HAS) compatible docking for mounting Linkbox+ WiFi or Linkbox+ 4G in standard 1,5x wall box with hidden cabling.
The docking is wire-free and has hooks for easy attachment and detachment of Linkbox+. The bottom lock screw prevents unintentional dismantling and the bottom cover of the docking hides unused connectors.
Installation instructions are available in the Waterguard+ Installation & User manual
Product launch is planned for 2024
| Compatibility | Linkbox+ WIFI og Linkbox+ 4G |
| Product approvals |
|
| Flammability | IEC 60950 1&22, CE‑UL94 V-0 |
| Environmental class | Ihht I&HAS Class 2 – Indoor |
| Color | White |
Connectors
| IN / OUT | TYPE |
| Dockingconnector for Linkbox+ | 2 x 20 pins proprietary connector for Linkbox+ (power and signals to Linkbox+) |
| Power | 1 x 2 pins +/- 230VAC |
| ModBUS connector | 1 x 3 pins |
| Ethernet | RJ45 |
| Valve control | RJ45 |

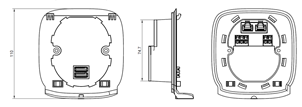

Product measures
| Product | HxWxD (mm) | Weight (g) |
| Abra I&HAS Wall Box Mount Bracket | 54x102.5/61.3 x 54 | ? |
