Keywords: Safety, bracket, Linkbox+ Wifi, Linkbox+ 4G, protective, cover, 5648924
| PRODUCT | Safety Bracket for Linkbox+ | |
| MPN | EAN | NOBB |
| 72.380.337313 | 7072380373138 | 5648924 |
Product description

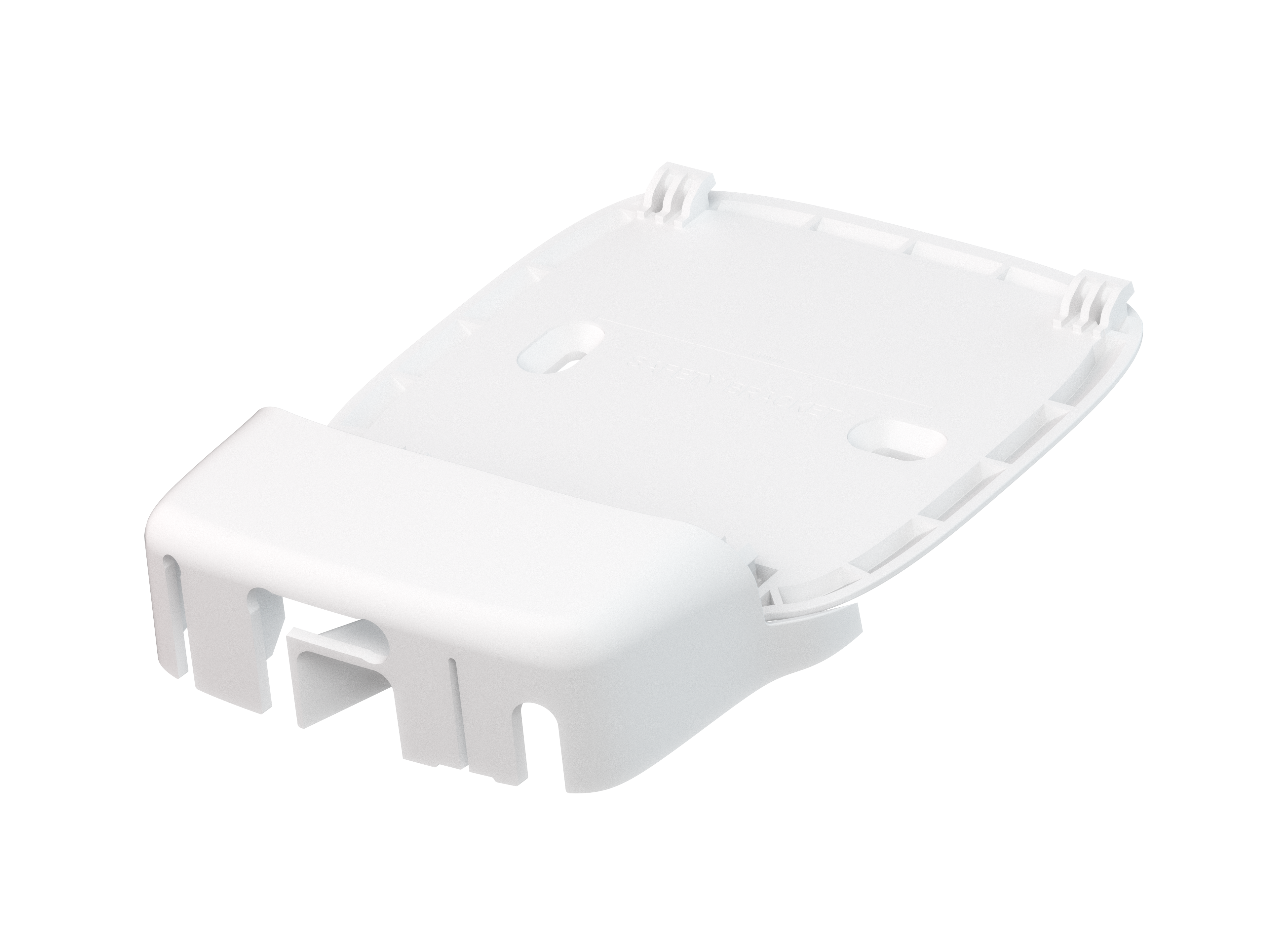

Intrusion & Hold-up Alarm System (I&HAS) compatible bracket for mounting Linkbox+ WiFi or Linkbox+ 4G to the wall or to a standard size wall box with 60 mm screw spacing. The bracket has hooks for simple attachment and detachment of the Linkbox+. The lock screw and the protective cover for cables prevents unintentional dismantling of the system.
Installation instructions are available in the Waterguard+ installation & user manual
The product has a planned launch in 2024.
Technical specifications
| Compatibility | Linkbox+ WiFi and Linkbox+ 4G |
| Regulatory compliance |
I&HAS standard EN 50131 |
| Flammability rating | IEC 60950 1&22, CE‑UL94 V-0 |
| Environmental class | According to I&HAS Class 2 – Indoor |
| Color | White |
MEASUREMENTS
| Product | HxWxD (mm) | Weight (g) |
| Linkbox+ I&HAS Wall Box Mount Bracket | 54x102.5/61.3 x 54 | 40 g |
