Introduction
This article describes the location of the Linkbox+ central unit, sensor tape for water leak detection, valves for hot and cold water control, and an external switch panel for controlling the water supply and setting off water alarms.
Detailed information on the installation of the individual products is available in the Waterguard+ installation and user manual.
Solution description
The Linkbox+ is installed in distribution cabinets in close proximity to valves. Sensor tape is connected to the Linkbox+ for detection of water leaks at the bottom of distribution cabinets.
Abra ModePanel+ is placed in a suitable location, typically by the front door, to activate Home mode, Away mode or to set a water alarm.
Outline of principles
The Abra ModePanel+ (5) has the following buttons and controls:
- Home (open valve)
- Away (close valve)
- Cancel alarm
OBS! To open the valves, click and hold the Linkbox+ button for three seconds, until you hear a "beep".
Installation

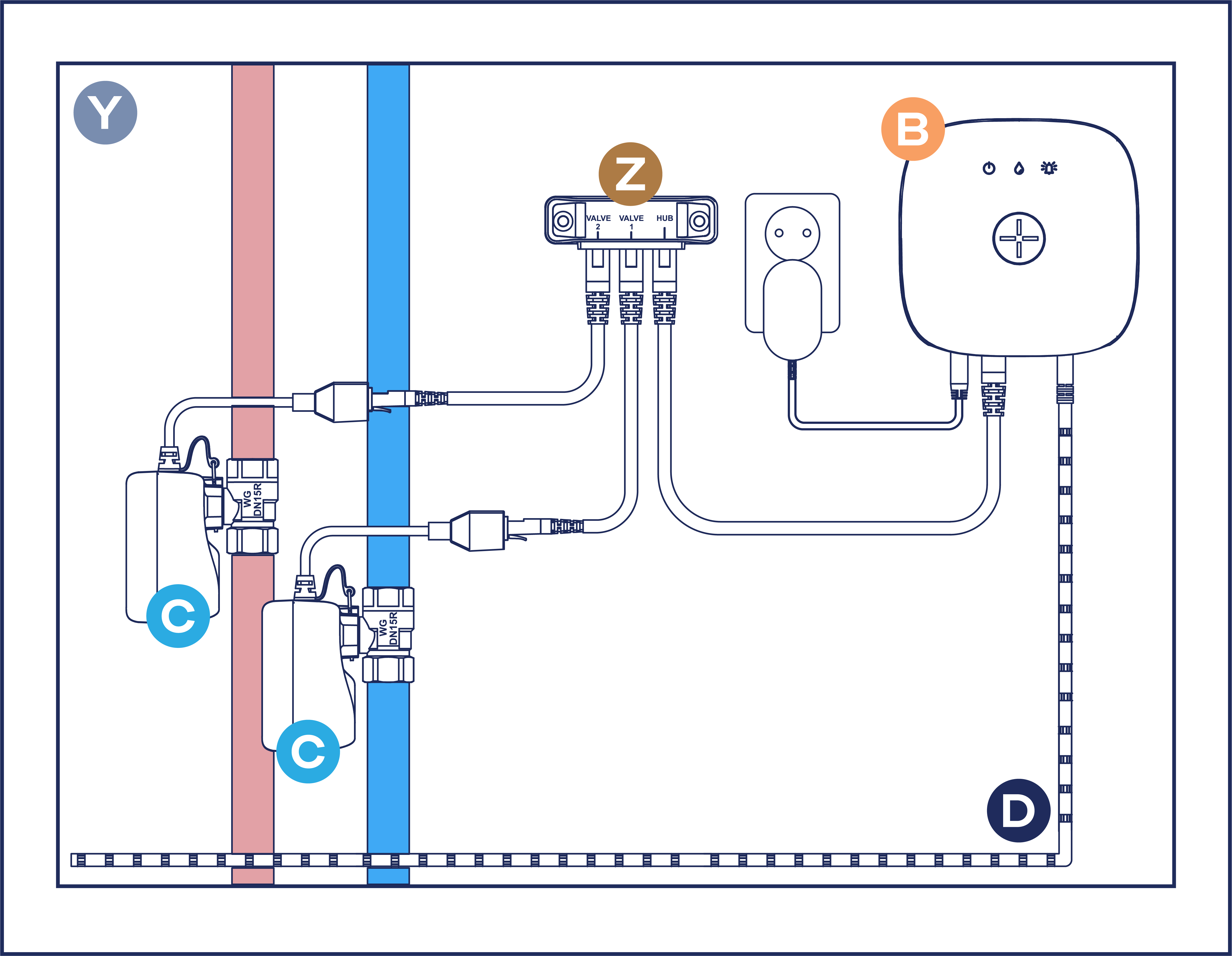

The Linkbox+ (B) is mounted on the included bracket inside the distribution cabinet and connected to 2 ball valves 1/2" (DN15) (or 3/4" (DN20)) (C) which are installed on the supply of hot and cold water. A wall socket with 230V AC is installed inside the distribution cabinet. Splitter for network cable and a total of 3x network cables are used for the installation of 2 valves. Sensor tape (D) is connected to the central unit, pulled down at the bottom of the distribution cabinet and secured with double-sided tape for water leak detection.
If necessary, wireless water sensors of the type Waterguard WaterSensor+ can be installed in locations prone to leakage or where the requirements of technical regulations require this.
Note! The distribution cabinet should have a plastic door or with a plastic segment to minimize the effect on the wireless range between the Linkbox+ and any Zigbee-based wireless devices connected to the Linkbox+ (e.g. smart door locks or similar).
| Ikon | Product | Number | Comment | Description |
|
|
Linkbox+ (central unit) and included 24V power adapter |
1 pcs. |
Linkbox+ 4G or Linkbox+ WiFi |
The central unit (B) is mounted using the supplied wall bracket in the distribution box and connected to power via the supplied 24V power adapter.
|
|
|
Waterguard kuleventiler |
2 pcs. |
1/2" (DN15) or 3/4" (DN20) |
Ball valves mounted on the supply of hot water (HV) and cold water (KV). |
|
|
Dual Ball Valve Cable Kit – Network Cable Splitter – for installation of two (2) ball valves including 3x Cat. 6 Network Cables (0.6 m) |
1 pcs. |
- |
1 x network cable 0.6 m for connecting one valve is included with all product packages. Product package with splitter and 2x network cables is sold as an accessory for connecting an additional valve.
|
|
|
Sensor Tape 3 m m/3.5 mm Jack | 1 pcs. |
- |
Sensor tape is connected to the central unit, pulled down at the bottom of the distribution cabinet and secured with double-sided tape for water leak detection. |
|
|
ModePanel+ |
1 pcs. |
- |
Wireless switch panel to set home and away modes, as well as set alarms. Easily set up against systems with the Abralife app in the installer flow. |
|
|
Distribution cabinet |
1 pcs. |
- |
Distribution cabinet with supply of hot and cold water. |
Product List
| Product | Number | Description | Article number | EAN / GTIN | NRF |
|
Abra Linkbox+ 4G or Abra Linkbox+ WiFi (B) |
1 pcs. | The central unit that handles signals from sensors and controls the ball valves. |
72.380.337113 or 72.380.337112 |
or 7072380371127 |
5648934 or 5648933 |
| 230V -> 24V 1.0A Power Adapter (B) | 1 pcs. |
24V DC power adapter for Linkbox+ WiFi and Linkbox+ 4G. Power adapter included with all Linkbox+ |
72.380.337315 | 7072380373152 | 5648925 |
|
Waterguard+ Ball Valve DN15 1/2" (C) or Waterguard+ Ball Valve DN20 3/4" (C) |
2 pcs. | Ball valve is installed on the water pipe to control the water flow. |
72.380.337303 or 72.380.337304 |
7072380373039 or 7072380373046 |
5648911 or 5648912 |
| Waterguard+ 1/2" and 3/4" Valve Actuator (C) | 2 pcs. | Actuator to operate the ball valve based on feedback from sensors. | 72.380.337305 | 7072380373053 | 5648876 |
| Waterguard+ Sensor Tape w/3.5 mm Jack (D) | 1 pcs. | Wired water sensor detects the presence of water. | 72.380.337307 | 7072380373077 | 5648877 |
| Cat.6 Cable - 2xRJ45 - 0.6 m (Z) |
1 pcs. |
Network cable for connection between the Linkbox+ and the valve actuator.
|
72.380.337324 | 7072380373244 | 5648887 |
| Dual Ball Valve Cable Kit (Z) |
1 pcs. |
Product pack of 2x Cat. 6 cables and 1x RJ45 cable splitter for installation of up to 2 valves. |
72.380.337322 | 7072389373220 | 5648893 |
| Abra ModePanel+ |
1 item |
Wireless switch panel from Abra for controlling water supply and alarms. |
72.380.337346 | 7072380373466 | 5648914 |
Feel free to use the Waterguard+ Wireless Double 1/2 product package - [Art. no.: 72.380.337110 - NRF: 5648931 - NOBB: 60600424] for the installation, in addition to the Abra ModePanel+ which is sold separately.
For a complete overview of product packages and products belonging to Waterguard+, see the article Overview of Waterguard+ product packages and article numbers (https://support.waterguard.no/hc/articles/14813969010845).
Installation instructions
Detailed instructions on how to install the product correctly and safely are available at Waterguard Customer Support under the section Installation and User Manual – Waterguard Customer Support (https://support.waterguard.no/hc/categories/13644910475549).
