Introduction

Waterguard+ is well suited for the detection of water leaks in shafts and similar installations with a sensor on each floor and shutting off water from a central point where the Linkbox+ (Gateway) is also installed.

For pipe dimensions from 1" to 2", Danfoss Solenoid valves and Waterguard+ Power Adapter for Solenoid Valves are used.

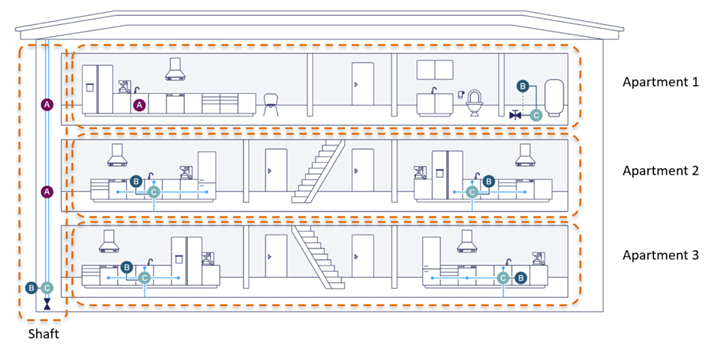

Principal sketch

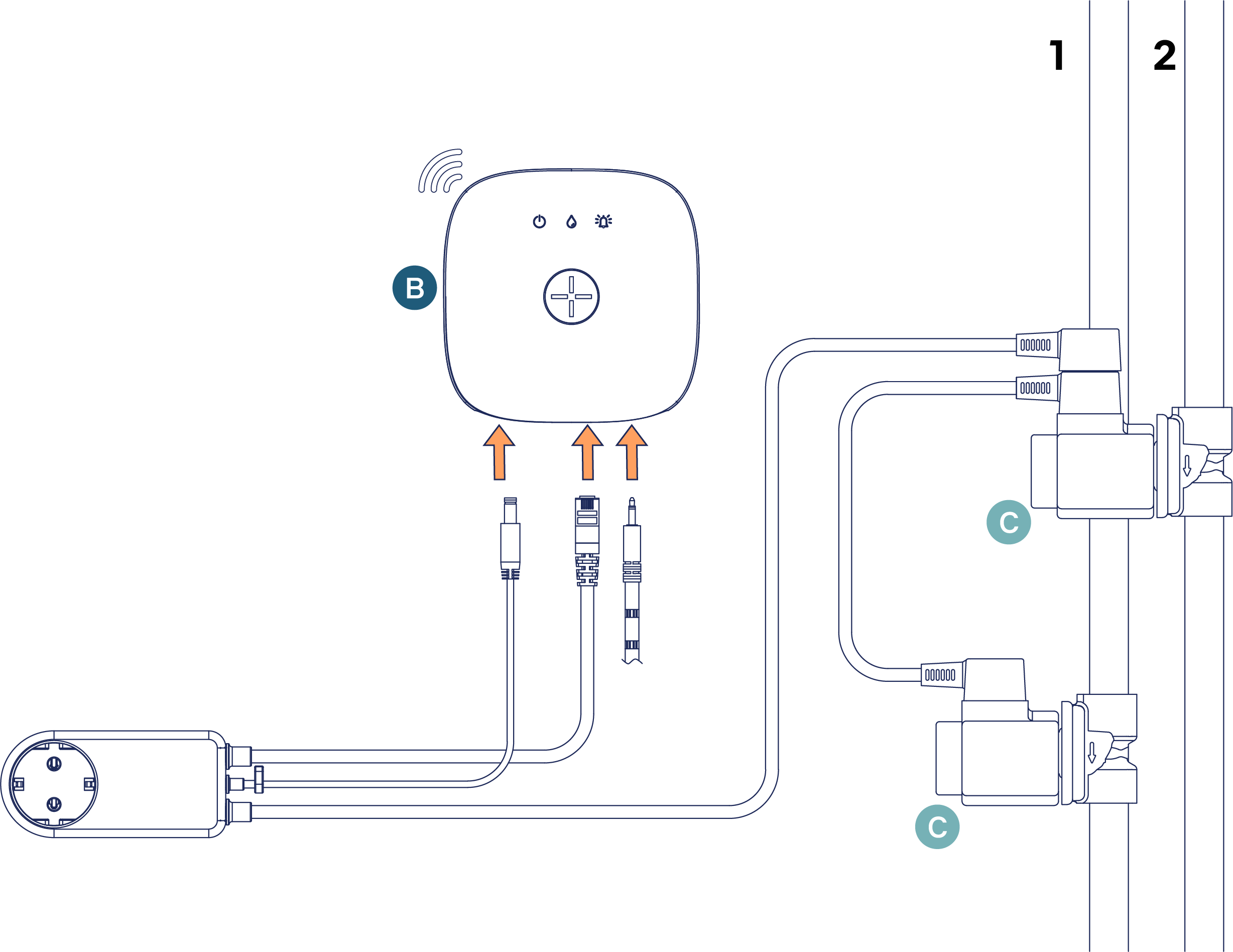

Connection diagram

Linkbox+ supports the connection of up to 2 solenoid valves

Setup with 2 valves

Setup with 1 valve

Wireless sensor on each floor (floor separation):

Product description

Icon	Product	Quantity	Comment	Description
	Linkbox+ 4G (central unit) and included 24V power adapter	1 pcs.	Linkbox+ 4G or Linkbox+ WiFi	The central unit (B) is mounted in a suitable place in the kitchen using the supplied wall bracket and connected to power via the supplied 24V power adapter.
	WaterSensor+	1pcs. per floor	-	Wireless water sensor, WaterSensor+ (A) is installed on each floor for leak detection. Connects to fixed power to act as a signal amplifier for WaterSensor+ on nearby floors.
	Solenoid valve (1/2" - 2")	2 pcs. (Possibly 3 for circulation loop)	See product list for an overview.	Valves (C) are installed at the bottom of the shaft for hot/cold + possibly circulation.
	Waterguard+ Solenoid Valve Split Cable 0.65 m or Solenoid Valve Split and Extension Cable - 3 m	1 extra per valve beyond 1.	-	Included cable for 1 valve. For several valves (up to 3), one cable is required per 3 meter cable to extend the distance between adapter and valve (if the distance between socket and valve is more than 2 metres) or between valves.
	1 pc. Sensor Tape 3 m w/3.5 mm Jack	1 pc. per floor	-	For Linkbox+ point detection and for each Water Sensor+. Sensor tape is connected to the central unit and/or bracket for Water Sensor+ and laid along the floor/wall where it is assumed that water will collect in the event of a spill or leak. ATTENTION! It is important that the surface is clean so that the sensor tape can adhere well
	Waterguard+ Water Sensor Bracket	1 pc. per Water Sensor+.	-	Fixed current bracket for shaft installation of Water Sensor+

Solution description

Linkbox+ (B) is mounted at the bottom of the shaft where the water is to be shut off in the event of a leak. Sensor tape is connected directly in Linkbox+ if you want leak detection at the bottom of the shaft.

Solenoid valves in the desired dimension (C) are mounted on water pipes and connected to the Linkbox+ via the Waterguard+ Power Adapter for Solenoid Valves. If more valves are needed, use a split cable for valves (5648199). PS! We recommend that the valve be installed on KV and VV. For circulating water, only a non-return valve is recommended.

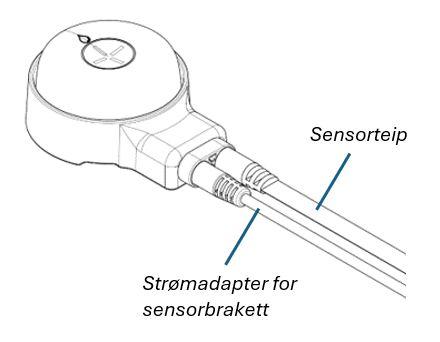

Sensor brackets are mounted in shaft per story. To ensure a good range (Meshing), the brackets must be connected to direct current using the power adapter for the sensor bracket. Sensor tape is connected to the sensor bracket as required and fixed in the shaft in a suitable way. Finally, the wireless sensors (A) are paired against the Linkbox+ and deployed in the sensor brackets.

For detailed instructions on installation and use, see our complete installation- and usermanual.

Product list (per shaft)

FDV documentation for the solution is available here.

NRF	NOBB	Antall	Beskrivelse
5648934	60600427	1pcx.	Linkbox+ 4G
5648888	60600395	1 pcs.	Power Adapter for Solenoid Valves
5648877	60600397	x pcs.	Sensortape w/ 3,5mm jack. 1 pc. sensor tape per wireless sensor. In addition, 1 piece of sensor tape can be connected directly in the Linkbox+ to secure the shaft bottom.
5648922	60600416	x pcs.	Sensorbracket. Normally 1 pc. per floor
5648875	60600167	x pcs.	Wireless sensor. 1 pc. per sensor bracket
5648923	60600417	x pcs.	Strømforsyning til sensorbrakett. Not mandatory, but used if sockets are available on each floor and you want a maintenance-free system that does not run on batteries
5515638 or 5515639 or 5516155 or 5515788 or 5515789 or 5515791	60612910 or 60612911 or 60602664 or 60610029 or 60610030 or 60610031	Antall ventiler pr. sjakt avhenger om det er kun KV eller KV+VV. Alternativt ventil nr. 3 på sirkulasjonsvann	Danfoss Solenoid valve 1/2" or Danfoss Solenoid valve 3/4" or Danfoss Solenoid valve 1" or Danfoss Solenoid valve 1 1/4" or Danfoss Solenoid valve 1 1/2" or Danfoss Solenoid valve 2"
5648199	60438089	1 pc. per additional valve	Solenoid Valve Split Cable 0.5 m If a longer split cable is needed, 5648246 can be used (3 metres)

Options and alternatives

Linkbox+ also supports the connection and control of other smart products and solutions for the home. For more information, visit www.abralife.no

Description

Icon	Product	Description
	Waterguard+ Sensor (mounted in brackett)	A Waterguard+ Sensor (mounted in bracket connected to power and Sensor Tape) is installed in every floor in a shaft. Wireless connection (WiMEA protocol) to Linkbox+ and sensors. The sensor bracket is mounted to the wall or to the floor.
	Linkbox+ (central unit)	Linkbox+ is mounted in a bracket on the wall, connected to external power supply, sensor tape and valve actuator. Linkbox+ is connected to the internet via local WiFi, network cable and/or LTE (4G). When connecting to Abra borettslag portal with an activated subscription, all central units (Linkbox+) will interact on a wireless mesh network so that water alarms is sent to surrounding residents around the unit with the water leakage, and to the board/caretaker as well, via portal, SMS and app.
	Waterguard+ Valve (motorized Valve)	Up to three (3) valves (1"DN25 to 2"DN50) is mounted on cold/hot/circulation water intake after the main stopcock. Valves is connected the power supply for valves from Linkbox+ with CAT6 network cable and power cable.
