| PRODUCT | Waterguard+ ValveActuator for 1/2" (DN15) and 3/4" (DN20) Ball Valves | |
| MPN | EAN | NOBB |
| 72.380.337305 | 7072380373053 | 5648876 |
Product description

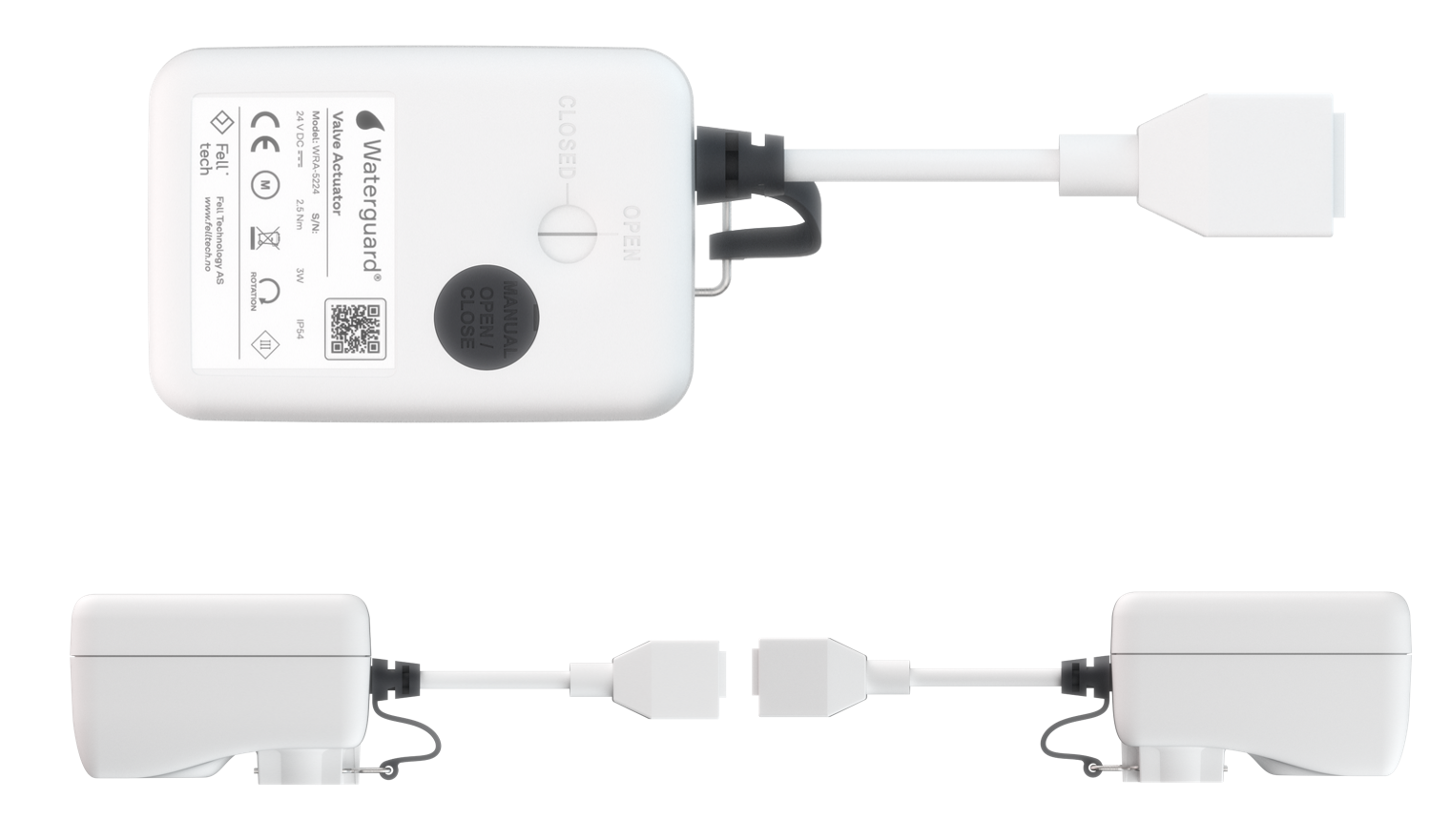

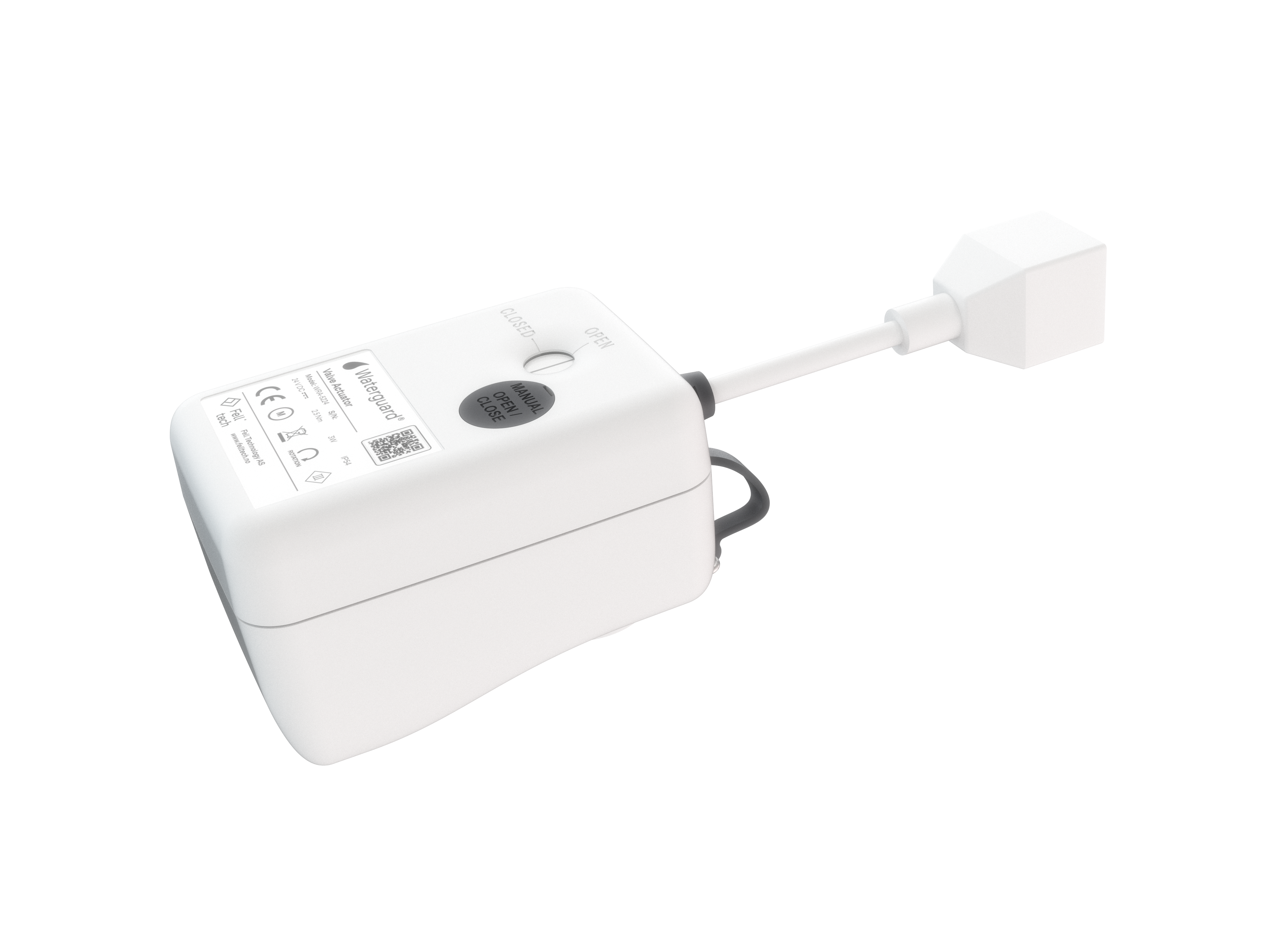

24V DC electric, floating-point actuator for 2-way ball valves (1/2" (DN15) Ball Valve Waterguard+ and 3/4" (DN20) Ball Valve Waterguard+). Position indicator and functionality for manual override. Powered and controlled by the Linkbox+ via Cat.6 cable connector interface.
See the article on installation of valve in Waterguard+ Installation & User manual for installation and operating instructions
Technical specifications
| Type | 2-way actuator (open/closed). Bi-directional |
| Power consumption | 24V DC/0,1A/3W |
| Rated torque | 2.5 Nm |
| Valve compatibility | 1/2" (DN15) Ball Valve Waterguard+ and 3/4" (DN20) Ball Valve Waterguard+ |
| Rotation |
CW |
| No-Load Power |
1.5 W max |
| No-Load Current |
0.08 A max |
| Operating time (open/close) |
6-15 seconds |
| IP degree |
IP54 |
| Ambient temperature range |
0°C to 70°C. Relative humidity: 0% - 80% |
| Operational temperature range |
0°C to 55°C. Relative humidity: 10% - 80% |
| Flammability |
UL94 H-B |
| Color |
White |
| Connector |
RJ45 (Cat-cable) |
| Compliance |
|
| Physical interface to valve | Proprietary, dual-direction quick release mount for easy installation and removal of actuator |
Wiring RJ45:
| GN-WH | Valve OPEN on power |
| BU-WH | Valve CLOSE on power |
| BU-WH | 24V DC feedback signal on valve CLOSED |
| GN-WH | 24V DC feedback signal on valve OPEN |
| BN | GND |
