PRODUCT |

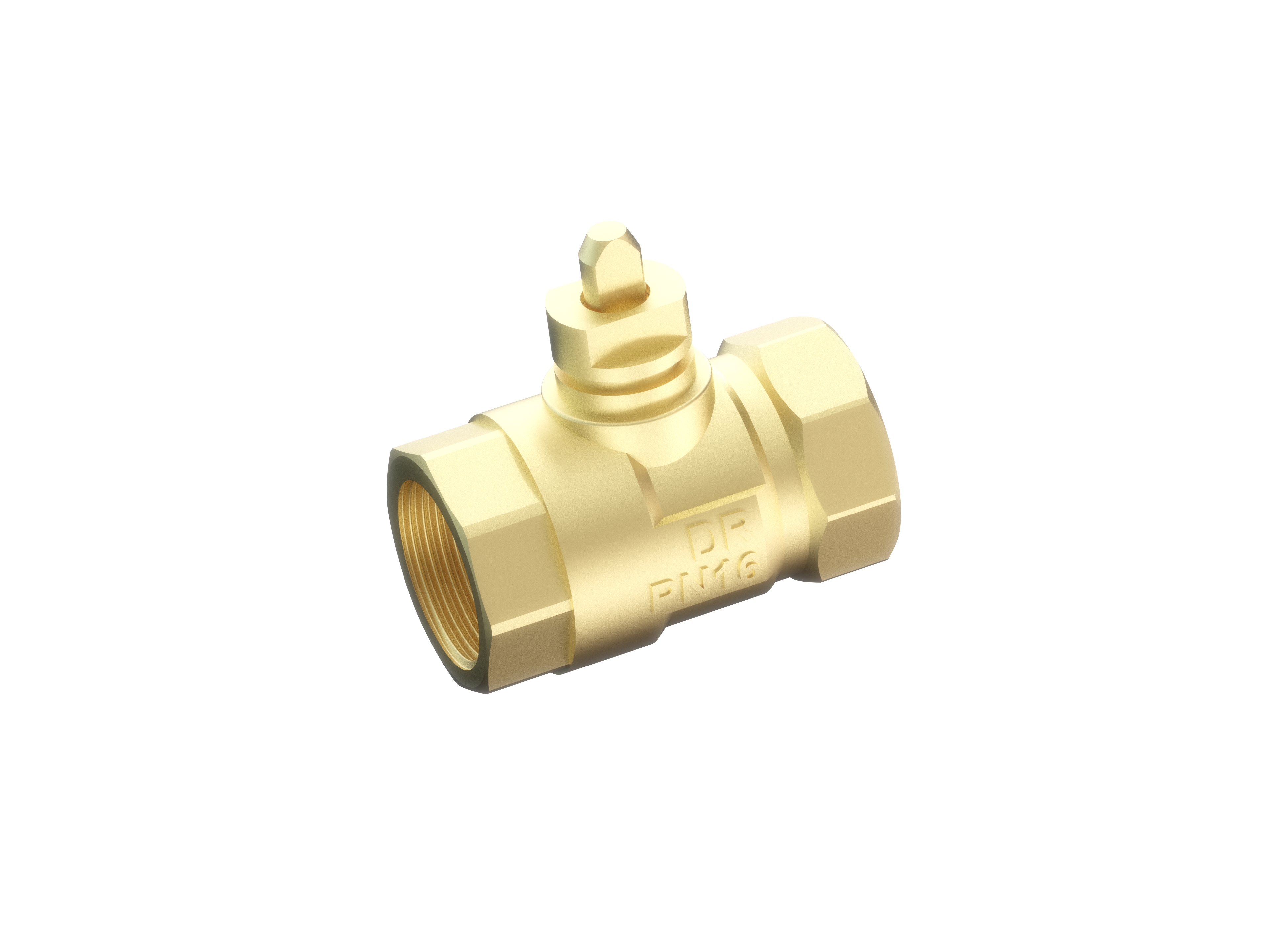

Waterguard+ 1/2" (DN15) Ball Valve |
|
MPN |
EAN |
NOBB |
72.380.337303 |
7072380373039 |
5648911 |
Product description
2-way ball valve with interface for electric actuator, intended for automatic control of potable drinking water supply. For installation instructions, click here
Technical specifications
Valve size | DN15 (1/2”) |
Bore | Min. Ø12 mm |
K(vs) | Min. 6.15 m3/h |
Type | 2-way (OPEN / CLOSED) |
Color | Natural Brass |
Maximum water pressure | 16 bar (PN16) |
Pipe thread | End connections with female threads according to ISO 228-1 (G 1/2”) |
Medium | Potable drinking water |
Water temperature | 2°C - 70°C |
Materials |
|
Hygienic approvals for materials |
|
Product certification |
|
Physical interface to actuator | Proprietary, dual-direction quick release mount for easy installation and removal of actuator |
Compliant materials | RoHS (2002/95/EC) and REACH |
