Keywords; DN20, 3/4", actuator, ball valve, 5648912

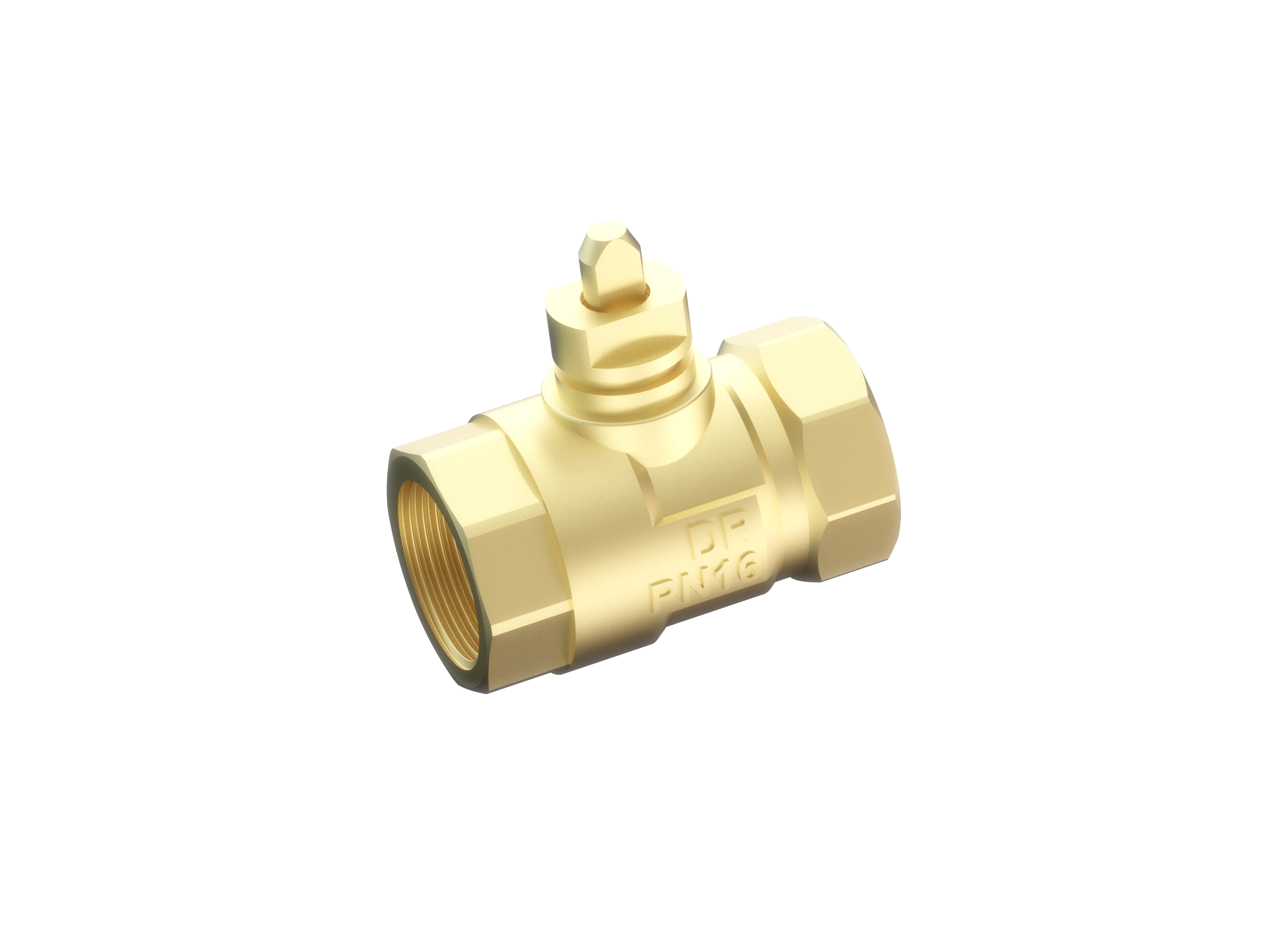

| PRODUCT | Waterguard+ 3/4"(DN20) Ball Valve | |
| MPN | EAN | NOBB |
| 72.380.337304 | 7072380373046 | 5648912 |
Product description
2-way ball valve with interface for electric actuator, intended for automatic control of potable drinking water supply. For installation instructions, click here
Technical specifications
|
Valve size |
DN20 (3/4”) |
| Bore | Min. Ø15 mm |
| K(vs) | Min. 10.5 m3/h |
| Type | 2-way (OPEN / CLOSED) |
| Color | Natural brass |
| Maximum water pressure | 16 bar (PN16) |
| Pipe thread | End connections with female threads according to ISO 228-1 (G 3/4”) |
| Medium | Potable drinking water |
| Temperature of medium | 2°C - 70°C |
| Materials |
|
| Hygienic approvals for materials |
|
| Product certification |
Sintef Technical Approved (TG20834) |
| Physical interface to actuator | Proprietary, dual-direction quick release mount for easy installation and removal of actuator |
| Compliant materials | RoHS (2002/95/EC) and REACH |
