This functional test ensures that all components work as intended and must therefore be carried out by the installer before the system is taken into use and then by the homeowner at least twice a year.
NB! We recommend that the homeowner participates in the test during installation to ensure adequate introduction and training in the system's functionality.
Simple valve test
- Press and hold the button on the Linkbox+ for 3 seconds until a short beep is heard.
- Ensure that the valve and water supply are closed.
- Press and hold the button on the Linkbox+ for 3 seconds until a short beep sounds.
- Ensure that the valve and water supply open.
|
Troubleshooting: If the valve does not close/open, check that the Cat.6 cable is correctly connected in both the valve actuator and Linkbox+ (blue RJ45 connector). Also check that Linkbox+ is connected to mains voltage (NB! Although Linkbox+ 4G has a built-in back-up battery, Linkbox+ will not be able to close/open the valves without mains power). |
Test of Sensor Tape connected to Linkbox+
This test is only relevant if Sensor Tape is connected to Linkbox+
- Open a water tap and let the water run (e.g. kitchen sink)
- Moisten one of the sensor points on the Sensor Tape with a wet cloth or similar.
- Ensure that:
- The valve(s) closes automatically
- The water stops running
- Linkbox+ sends out a sound signal
- The water drop symbol on Linkbox+ lights up red
- The user receives a push notification on their mobile phone (if the Abralife app is in use)
- Briefly press the Linkbox+ button (<1 second) to mute the alarm signal
- Gently wipe the sensor point. Make sure it is completely dry.
- Press and hold the button on the Linkbox+ for 3 seconds to reset the system and open the valve(s)
- Make sure that:
- The valve(s) open automatically
- The water starts to flow
- The water drop symbol on the Linkbox+ lights up green
- The user receives a push notification on their mobile phone (from the Abralife app)
- If sensor tape joint or splitter is used, the test is repeated for all sensor tapes.
|
Troubleshooting: -If the system does not go into alarm when the sensor tape is wetted, check that the sensor tape is correctly connected to the Linkbox+ (jack plug). Also check that there is no damage to the sensor tape. -If the system goes into alarm when the sensor tape is wetted but the water remains open, see the section "Simple valve test". -If a joint or splitter is used and some of the sensor tapes do not trigger an alarm, check that the tape is correctly connected in the joints. If necessary, swap the tapes to determine whether it is the splice or the tape that is the problem. -If the valve does not open again after the test, there is most likely still moisture on the sensor tape. Wipe well. |
Test of wireless sensors
This test is only relevant if wireless sensors are used
NB! Do not apply large amounts of water to the sensor when it is held upside down. The sealing mechanism requires the sensor probes to point downwards.
- Open a water tap and let the water run (e.g. kitchen sink)
- Moisten the sensor points on the wireless sensor with a wet cloth or similar:
- If the sensor is mounted in a bracket with a sensor tape, moisten one of the sensor points on the connected sensor tape.
- If the sensor is mounted in a bracket without sensor tape, moisten one of the two pairs of sensor probes on the back of the bracket.

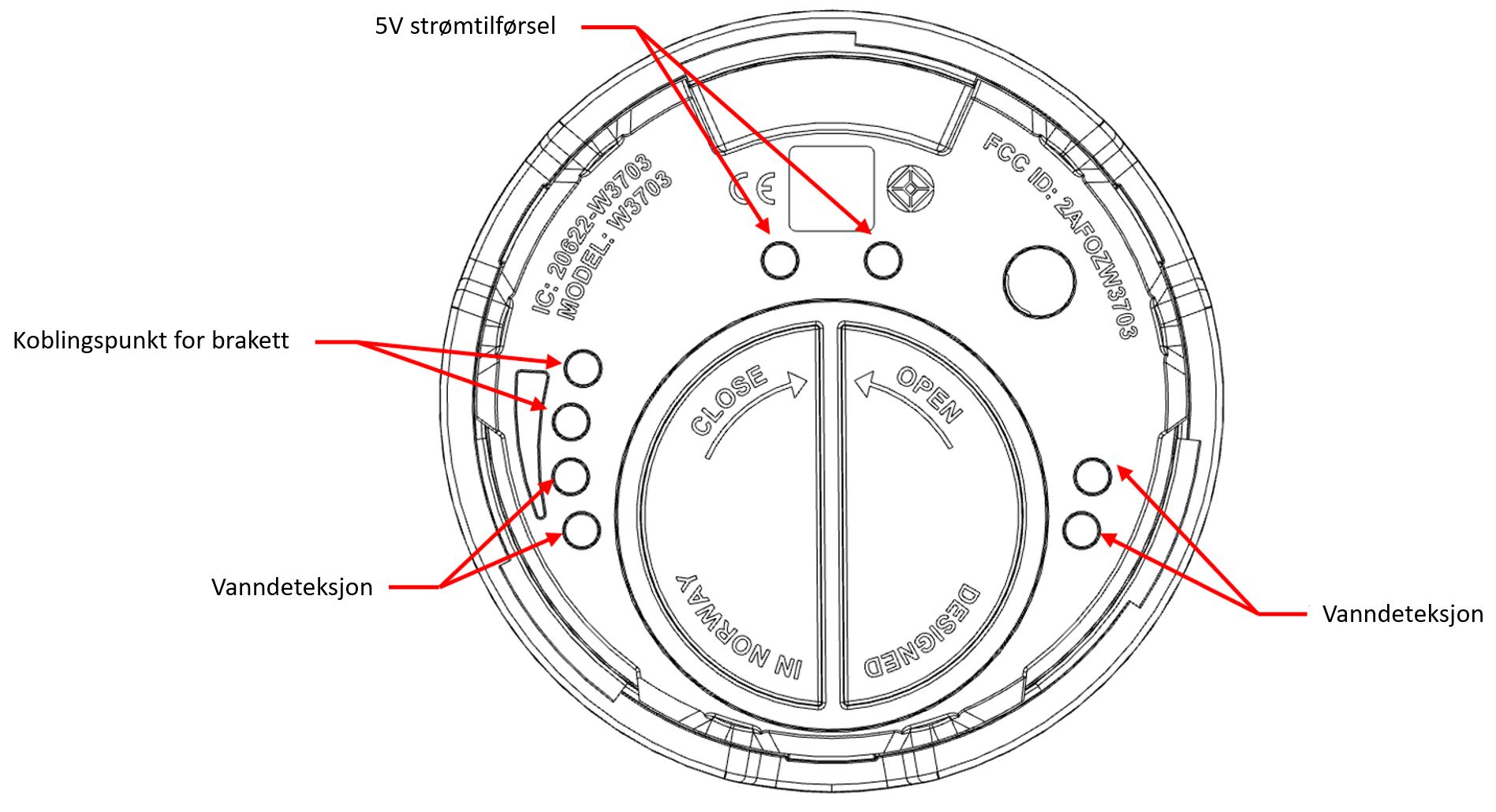

- If the sensor is placed loosely without a bracket, moisten one of the two pairs of sensor probes on the underside of the sensor (see picture below)
- Ensure that:
- The valve(s) closes automatically
- The water stops flowing
- Linkbox+ emits a sound signal
- The water drop symbol on Linkbox+ lights up red
- The current wireless sensor emits an acoustic signal
- The water drop symbol on the current wireless sensor lights up red
- User receives push notification on their mobile phone (from the Abralife app)
- Briefly press the Linkbox+ button or sensor button (<1 second) to mute the alarm signal
- Gently wipe the sensor point. Make sure it is completely dry
- Press and hold the button on the Linkbox+ to reset the system and open the valve(s)
- Make sure that:
- The valve(s) open automatically
- The water starts to flow
- The audio signal from Linkbox+ and the current wireless sensor stops
- The water drop symbol on the Linkbox+ and the applicable wireless sensor lights up green
- User receives push notification on mobile phone (from Abralife app)
- Repeat the test for each installed wireless sensor
|
Troubleshooting: -If the system does not go into alarm when a sensor is wetted, make sure the sensor is powered. Check that the battery is correctly installed and that the protective plastic on the battery has been removed. If there is still no alarm, ensure that the sensor is paired with Linkbox+. The easiest way to see this is in the Abralife app. If the app is not being used, try resetting the sensor by holding down the button for approx. 10 seconds until the drop symbol starts flashing white. The sensor is then paired with Linkbox+ again. -If the system does not go into alarm and you have mounted the sensor in a bracket (with or without sensor tape), try testing the sensor without using a bracket. If the system then triggers an alarm, check the bracket and any connected sensor tape. |
Test remote valve control with the Abralife app (Optional)
The Abralife app can be used to shut off and open the water wherever you are (Assumes that Linkbox+ is connected to the internet and linked to a home).

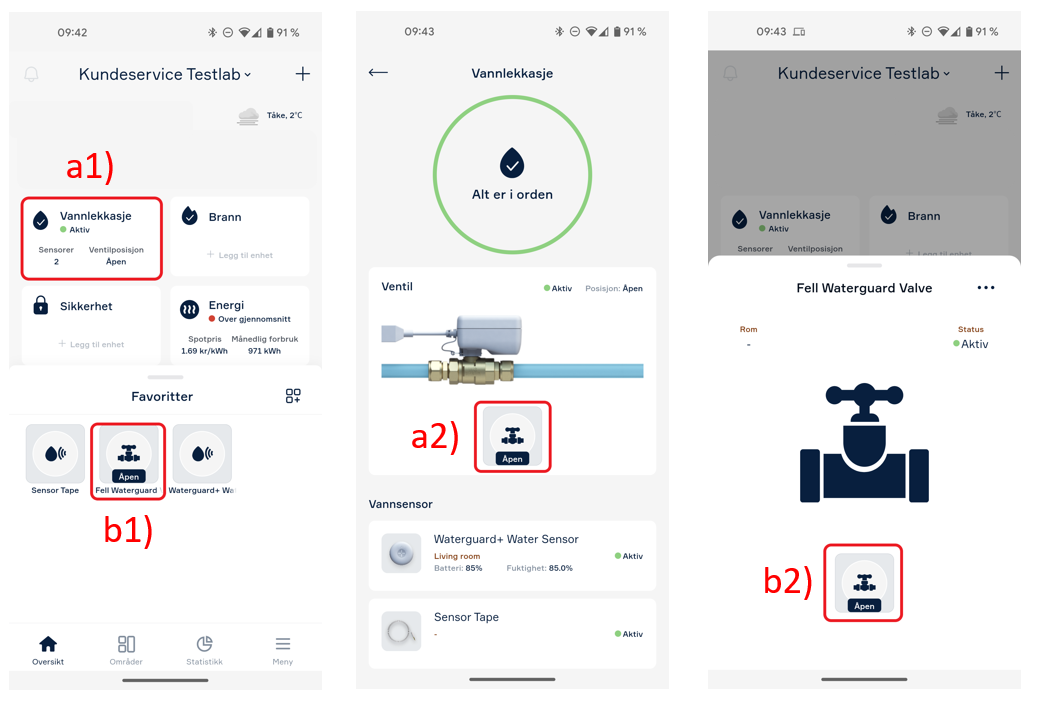

In the overview screen, click on the water leakage tile (a1) or valve widget (b1). Press the valve button (a2 / b2) to close the valve. Make sure that the valve and water supply are actually closed. Press again to open and ensure that the valve and water supply open.
|
Troubleshooting: -If the valve does not close when you click the valve button in the app, check that Linkbox+ and the mobile phone are connected to the internet. Also check that you have selected the correct home in the app (at the top of the "overview"). -See also the section "Simple valve test" |
